Braided form high strength acrylic synthetic fiber impregnated with special PTFE and dispersion and lubricant. The packing has excellent properties of tightness, lubricity and resistance to chemical used in pumps and valve and can handle most chemicals except oxodizer.

Especially form the condition of middle temperature, high pressure, high speed and where contamination is not permitted

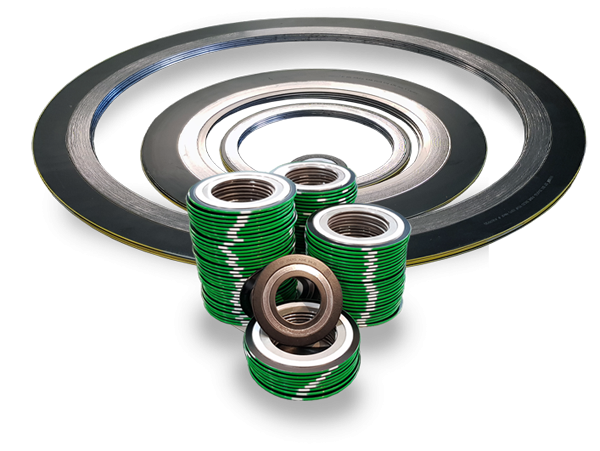

3Star Spiral Wound Gasket is a semi-metallic gasket which is commonly used as sealing on pipe joints.

3Star Spiral Wound Gasket  product already meets the criteria for use in critical applications especially in Oil & Gas industry. the size of the Spiral Wound Gasket was designed to refer to the ASME B16.5, BS1560, ASME Series A (MSS-SP44) Flange design standards, ASME B16.47 Series B (API605), BS EN 1092 (BS (4504), DIN and also JIS Design Pressure Spiral Wound Gasket 125 PSI – 2500 PSI

This Spiral Wound Gasket gasket is excellent in term for use as prevention of leakage at the pipeline connections where there is potentially fire, toxic waste pollution and negative impact to the environment. The brand of this Spiral Wound Gasket product called “Artius”

These gaskets are composed of carefully selected cushion material such as Asbestos Millboard, Non Asbestos Millboard, Graphite Sheet and PTFE with external metal jacket of carbon steel, stainless steel,copper, 5Cr-0.5Mo alloy steel, etc. They are widely used on piping flanges, joints of machinery and heat exchangers because they can be fabricated not only to a regular round shape but also to other irregular shapes such as oval, rectangular, etc.With additional rib or rib to seal multi-pass heat exchangers.An increased demand has recently been seem for a special type having attached expanded graphite tapes on both sealingfaces to on crease salability.

3STAR Expanded Graphite Gasket shows a good adherence to flange and performs a sealing performance even under low seating stress.There is no property change under temperature variation from cryogenic to High Temperature range.It shows good corrosive & chemical resistance.Various kinds of this type of graphite gasket such as stainless steel (wire mesh, foil and tang)inserted types can be available in accordance with some special conditions

3STAR Rubber Sheet are manufactured for you different requirement such as oil resisting, acid and alkali resisting, cold and heat resisting.Insulation, anti seismic, etc. They can cut into gasket, used in chemical, efections, fire resisting, and food. Also can be sealer,rubber ring, rubber mat, sealing strip.

Ebilon Gasket are able to be installed with small stress to the flanges and it is suitable for the industries which high cleanness is desired such as Electronics, Foods, Pharmacy. The surface of Rubber have 2 projection and it made better sealing effect than the Rubber Flat Sheet Gasket and it made excellent sealing effect with lower installation torque. Especially, it is especially ideal for the flanges made of Plastic such as PVC, CPVC, FRP, PVDF, Polypropylene.

Elastic cushion materials (Compressed Non-Asbestos sheet, Rubber sheet) is enveloped with PTFE sheet into a gasket. Excellent in chemical resistance.

The 3STAR Expanded Graphite Gasket demonstrates excellent flange adherence and provides effective sealing performance, even with minimal seating stress. It maintains its properties across a wide temperature range, from cryogenic to high temperatures. Moreover, it exhibits impressive resistance to corrosion and chemicals. To cater to specific requirements, different variations of this graphite gasket are available, including stainless steel (wire-mesh, foil, and tang) inserted types.

This sheet gasket is made from 100% expanded PTFE with multidirectional strength. Developed to come up with the problems of creep and cold flow. Excellent in chemical resistance and in the use and cut gasketing process.

3STAR Joint Sealant is and expanded, pure PTFE sealing material. From very conformable, flexible strip forms, using in applications involving non-standard flanges and harsh surface and places where the enough force cannot be given This has outstanding chemical resistance and is inherently clean, making the product particularly suitable for sealing against aggresive media or in situations where feedstock contamination may be of concern.
